Belts, narrow: ZIRCONIT ZR 496 Z

Aggressive zirconia alumina belts with heat-reducing coating for applications with maximum stress and high demands on economy
Product benefits
  • Very high stock removal rate and long service life
  • Maximum performance through optimized abrasive grit coating process in combination with a robust cloth backing
  • Especially suitable for applications with high grinding pressure
  • Especially efficient when grinding heat-sensitive materials thanks to active ingredient coating
/fileadmin/datapool/Unternehmensgruppe/Produktfinder/Produktbilder/040-49640.jpg
Applications
Tubes, rods, wire:
  • Leveling of weld seams and surface defect grinding
    Forged and cast parts:
    • Grinding off castings on forged parts such as hand tools, pots, pans and knives
      Tank and vessel construction:
      • Grinding of stainless steel tanks and containers on stationary grinding machines
        Product design
        Type:
        ZIRCONIT ZR 496 Z
        Grain:
        Zirconia alumina
        Bonding:
        Resin, with heat-reducing active ingredient coating
        Backing:
        Very heavy, stiff Z-polyester cloth
        Coating:
        Closed
        Grit range:
        # 24/36/40/50/60/80/120
        Stock programme Belts, narrow: ZIRCONIT ZR 496 Z (Width x Length)

        For current delivery forms and times, please contact your local customer service or use our online service portal "Hermes Connect". Already registered as a customer there?

        Pictogram - material qualification steel very suitable
        Pictogram - material qualification stainless steel very suitable
        Pictogram - material qualification high-alloy steel very suitable
        Pictogram - material qualification non-ferrous metal very suitable
        Pictogram - material qualification titanium very suitable
        Very suitable
        Suitable

        Other dimensions and designs on request

        Download
        Product Data Sheet as a PDFUS Safety Data Sheet ZIRCONIT ZR 496 ZFVPI, FR, ZIRCONIT ZR 496 ZSVPI, IT, ZIRCONIT ZR 496 ZVoluntary-Product-Information_49640.pdf

        About the application "Grinding of stainless steel tanks and containers on stationary grinding machines" there are also:

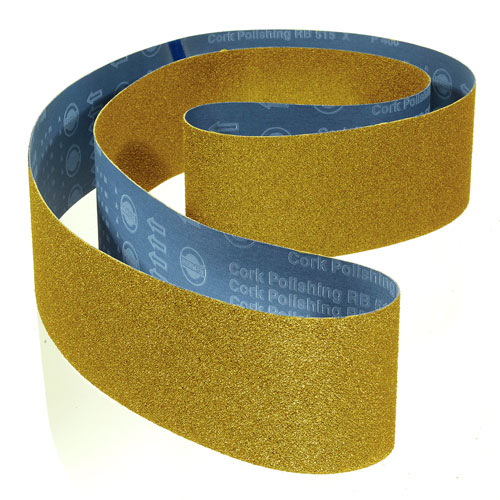

        Belts, narrow: Cork RB 515 X
